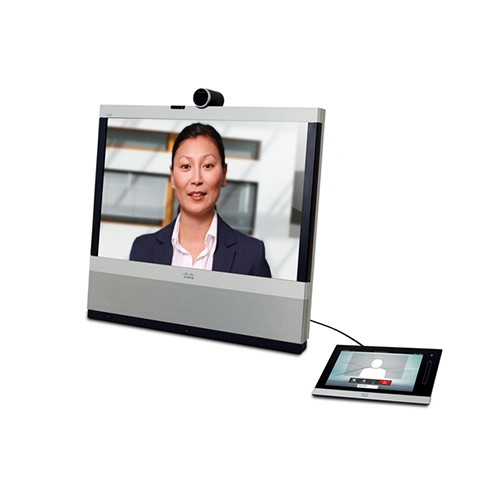

Система видеоконференцсвязи Cisco EX90 [CTS-EX90=]

Базовая система конференц-связи Cisco EX90 с NPP. Без шифрования. Системы конференц-связи Cisco TelePresence EX . • Обеспечивает разрешение 1080p с частотой 30 кадров в секунду, поддерживает два типа экранов : 24 дюйма и 21,5 дюйма. • Позволяет удобно общаться и обмениваться данными — от простой передачи готовых файлов до видеозвонков. • Имеет простой и удобный интерфейс — управление системой не будет отвлекать от разговора. СНЯТО С ПРОИЗВОДСТВА Характеристики Product Compatibility Fully compatible with standards-compliant telepresence and video systems Software Compatibility Cisco TelePresence Software Version TC4.0 or later Components Fully integrated unit including: • Codec • Display • Camera • Microphone and loudspeakers • Cables including: VGA-to-DVI-I cable, DVI-D cable, 3.5-mm jack audio cable, LAN cable, power adapter, and power cable Display • EX90 • 24-in. LCD monitor • Resolution: 1920 x 1200 (16:9) • Contrast ratio: 1000:1 • Viewing angle: 160° • Response time: 5 ms • Brightness: 300cd/m2 • 5° - 15° tilt • EX60 • 21.5-in. LCD monitor (with LED backlight) • Resolution: 1920 x 1080 (16:9) • Contrast ratio: 1000:1 • Viewing angle: 170° • Response time: 5 ms • Brightness: 225cd/m2 PC and second-source video input DVI-I EX90: HDMI In. Supported PC input resolutions EX90: SVGA (800 x 600) to WUXGA (1920 x 1200) EX60: SVGA (800 x 600) to 1080p (1920 x 1080) Camera • Cisco TelePresence PrecisionHD design • Resolutions: 1080p30 and 720p60 • Auto focus • Integrated privacy shutter • Document camera mode • Multicoated all-glass optics • 1/3-in., 2.1 megapixel CMOS sensor EX90 • Horizontal field of view: 45°-65° • Vertical field of view: 40°-27° • Focus distance 0.3-infinity • Optical, motorized zoom EX60 • Horizontal field of view: 50° • Vertical field of view: 29° • Focus distance 0.1-infinity Audio system • Two stereo front speakers • Integrated full-range microphone • One 3.5-mm line-in jack for PC or other audio source • Two 3.5-mm jack for headset • Wideband handset • Bluetooth-ready • Integrated subwoofer (EX90 only) • Support for Performance Mic 20 (EX90 only) • HDMI audio input/output (EX90 only) User interface Cisco TelePresence touch screen • Eight-inch projected capacitive touch screen • Resolution: 800 x 480 Language support English Physical dimensions (H x L x D) Cisco TelePresence System EX90 main unit: 21.4 x 22.3 x 6.8 in. (54.5 x 56.7 x 17.3 cm) Cisco TelePresence System EX60 main unit: 20.0 x 20.5 x 5.4 in. (50.8 x 52 x 13.8 cm) • Cisco TelePresence touch screen: 1.7 x 9.0 x 5.7 in. (4.4 x 22.8 x 14.5 cm) • Cisco TelePresence touch screen with headset: 3.0 x 11.4 x 7.4 in. (4.4 x 22.8 x 14.5 cm) • Cable length: 47 in. (120 cm) Weight Cisco TelePresence System EX90 main unit: 24.2 lb (11.0 kg) Cisco TelePresence System EX60 main unit: 12.9 lb (5.85 kg) • Cisco TelePresence touch screen: 1.4 lb (0.64). • Cisco TelePresence touch screen with handset: 2.1 lb (0.94 kg) Power Autosensing power supply 100-240 VAC, 50/60 Hz EX90: 150 watts max EX60: 75 watts max Temperature range Operating temperature and humidity: • Ambient temperature: 32 to 95°F (0 to 35°C) • Relative humidity (RH): 10 to 90% • Storage and transport temperature at RH 10-90% (noncondensing): -4 to 140°F (-20 to 60°C) Approvals and compliance • Directive 2006/95/EC (Low-Voltage Directive) - Standard EN 60950-1 • Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN 61000-3-2/-3-3 • Approved according to UL 60950-1 and CSA 60950-1-07 • Complies with FCC15B Class A Bandwidth H.323/SIP up to 6 Mbps point-to-point Video standards • H.261 • H.263 • H.263+ • H.264 Video features • Widescreen: 16:9 • Advanced screen layouts • Intelligent video management • Local auto layout Live video resolutions (encode/decode) • 176 x 144@30 fps (QCIF) • 352 x 288@30 fps (CIF) • 512 x 288@30 fps (w288p) • 576 x 448@30 fps (448p) • 768 x 448@30 fps (w448p) • 704 x 576@30 fps (4CIF) • 1024 x 576@30 fps (w576p) • 640 x 480@30 fps (VGA) • 800 x 600@30 fps (SVGA) • 1024 x 768@30 fps (XGA) • 1280 x 1024@30 fps (SXGA) • 1280 x 720@30 fps (720p30) • 1280 x 768@30 fps (WXGA) • 1920 x 1080@30 fps (1080p30) * • 1440 x 900@30 fps (WXGA+) * • 1680 x 1050@30 fps (WSXGA+) * • 1600 x 1200@30 fps (UXGA) * • 512 x 288@60 fps (w288p60) * • 768 x 448@60 fps (w448p60) * • 1024x576@60 fps (w576p60) * • 1280x720@60 fps (720p60) * Requires premium resolution option Audio standards • G.711 • G.722 • G.722.1 • 64/128 kbps MPEG4 AAC-LD • AAC-LD stereo Audio features • CD-quality 20-kHz stereo • Acoustic echo canceling • Automatic gain control • Automatic noise reduction • Active lip synchronization Dual stream • H.239 (H.323) dual stream • BFCP (SIP) dual stream • EX90 supports resolutions up to 1080p in both main stream and dual stream simultaneously • EX60 supports resolutions up to 720p in both main stream and dual stream simultaneously Protocols • H.323 • SIP Network interfaces • Internal 2-port Ethernet switch • One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for PC • One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for LAN Other interfaces • Bluetooth for future applications • Two USB device for future applications (EX90) • One USB device for future applications (EX60) IP network features • Domain Name System (DNS) lookup for service configuration • Differentiated Services (QoS) • IP adaptive bandwidth management (including flow control) • Auto gatekeeper discovery • Dynamic playout and lip-sync buffering • H.245 DTMF tones in H.323 • Date and time support with Network Time Protocol (NTP) • Packet loss-based downspeeding • DNS-based URI dialing • TCP/IP • Dynamic Host Configuration Protocol (DHCP) • IEEE 802.1x network authentication • IEEE 802.1q VLAN Firewall traversal • Cisco TelePresence Expressway Technology • H.460.18 and H.460.19 Firewall Traversal Embedded encryption • H.323/SIP point-to-point • Standards-based: H.235 v2 and v3 and Advanced Encryption Standard (AES) • Automatic key generation and exchange • Supported in dual stream Security features • Management via Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol • IP administration password • Menu administration password • Disable IP services • Network settings protection MultiSite EX90 only • 4-way 720p30 Continuous Presence (CP) MultiSite • Full individual audio and video transcoding • Individual layouts for each participant (CP layout without self view) • H.323/SIP/VoIP in the same conference • Best Impression (Automatic CP layouts) • H.264, encryption and dual stream from any site • IP downspeeding • Dial In/Dial out
