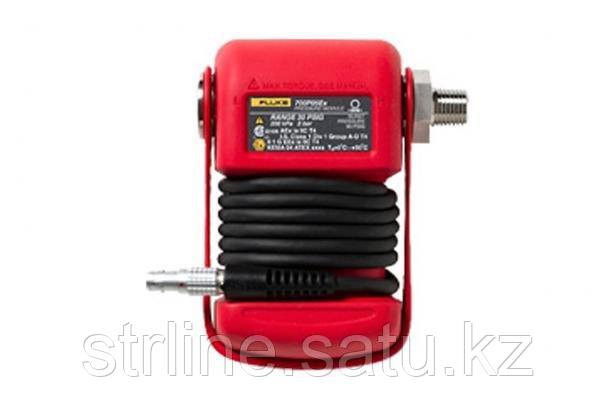

Fluke 700P24Ex Differential Pressure Module Wet

Обзор прибора: Fluke 700P24Ex Differential Pressure Module Wet Display pressure readings in any of 10 different pressure units you specify in the calibrator setup Ключевые особенности Rugged urethane molded case protects the module from rough handling and harsh conditions Features internal temperature compensation from 0 °C to 50 °C for full-accuracy performance Includes NIST-traceable calibration certificate Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source Certified by CSA: I.S. Class I, Div 1, Groups A-D T4, Ta = 0 °C to 50 °C ATEX II 1G EEx ia IIC T4 Compliant. One year warranty Specifications Range 15 psi / 103 kPa Resolution 0.001 / 0.01 Reference Uncertainty (23 ± 3°C) 0.025% Total¹ Uncertainty 1 year 0.050 High Side Media² 316 SS Low Side Media² Dry 1. Total uncertainty, one year for temperature range 0°C to +50°C. Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C. Compensated temperature range is 15°C to 35°C. 2. "Dry" indicates dry air or non-corrosive gas as compatible media. "316 SS" indicates media compatible with Type 316 Stainless Steel. "C276" indicates media compatible with Hastelloy C276.
