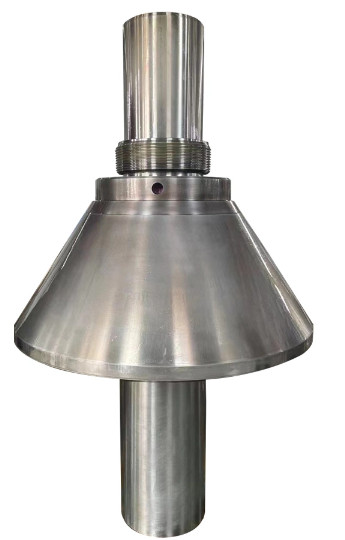

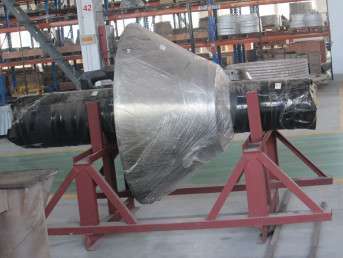

Главный вал Конусной дробилки в сборе (без броней) 452.0655-901

NS400 Main shaft assembly (Ex. Liner) 452.0655-901 Другие запасные части и детали КМД (КСД) NS400 (Аналог CS440/S4000/S4800) по запросу: 452.1699-901 Main shaft assembly 442.8093-00 Top shell assembly 442.8075-01 Arm shield 442.8509-00 Top shell assembly (Ex. Liner) 452.0230-901 Bottom Shell 442.9966-00 Pinion shaft housing assembled 452.0230-901 Bottom Shell 442.7201-00 Cover 843.1267 Stud screw,SMS1460,M12×45 847.0147-00 Washer BRB 13×24 HB200 ISO 7089 845.0030-00 Lock nut M12 8 FZB ISO 7040 442.7140-00 Liner-Pin Shaft Arm 442.7141-00 Liner-Narrow Arm 900.0027-00 Elbow A4/90 3” A4 SMS 435 442.7146-01 Bottom shell bushing 853.0464-00 Pin CP 12M6×12 SMS 2374 900.0921-00 Swivel branch tee adapter 3/4” 900.1412-00 “Pipes Pipe KR 3/4”×70” 900.0276-00 Cover 3/4” 452.0243-901 Liners in Bottom Shell 442.7106-01 Dust collar 840.0634-00 Screw M6S 16×25 8.8 ISO 4017 442.7109-01 Ring 853.0464-00 Pin CP 12M6×12 SMS 2374 840.1281-00 Screw M6S 16×80 8.8 ISO 4017 847.0016-00 Washer BRB 17×30 HB200 ISO 7089 442.7110-01 Locating bar 442.7168-01 Shim T=0.1 442.7168-02 Shim T=0.5 442.7168-03 Shim T=0.7 442.7168-04 Shim T=1.0 841.0019-00 Screw MC6S 10×40 12.9 442.7170-01 Gasket 442.7108-01 Seal ring inner 840.0071-00 Screw M6S 16×65 8.8 ISO 4014 847.0060-00 Washer TBRSB 17×42 840.1073-00 Screws M6S 42×220 8.8 845.0322-00 Nut M6M M42 8 FZB ISO 4032 847.0171-00 Washer BRB 43×80 HB 200 SS 3576 899.0278-00 Protective Cap SW65 2 H20 442.9530-01 Screw M6S 42×100 899.0278-00 Protective Cap SW65 2 H20 442.8068-01 Eccentric 442.8067-01 Eccentric bushing 20+25+30+36 442.7142-01 Hub 442.7169-00 Ring 840.1157-00 Screws M6S 12×40 10.9 ISO4017 847.0147-00 Washer BRB 13×24 HB200 ISO 7089 442.9609-01 Key R25×14×250 841.0027-00 Screw MC6S 12×70 12.9 841.0025-00 Screw MC6S 12×50 12.9 847.0180-00 Washer DIN 137 B 13×24 442.7093-00 Gear and pinion set 442.7171-01 Key 442.7107-01 Eccentric wearing plate 853.0646-00 Pin Prym N 16×45 442.7163-01 Hydroset cylinder 840.0671-00 Screw M6S M24×90 8.8 ISO 4014 847.0124-00 Washer BRB 25×45 HB200 SS 3576 442.7166-01 Hydroset cylinder bushing 840.0019-00 Screws M6S 8×12 8.8 841.0019-00 Screw MC6S 10×40 12.9 847.0012-00 Washer BRB 8.4×16 HB200 ISO 7089 873.0892-00 Seals O-ring 532.26×6.99 442.9672-00 Piston 853.0119-00 Pin CP 25m6×60 SMS 2374 442.7122-01 Piston wearing plate 442.7121-01 Step washer 442.7112-00 Chevron packing 442.7167-01 Packing clamp plate 841.0266-00 Screw MC6S 12×25 8.8 442.9663-00 Hydroset cylinder cover 840.0671-00 Screw M6S M24×90 8.8 ISO 4014 840.0676-00 Screw M6S 24×140 8.8 ISO 4017 847.0124-00 Washer BRB 25×45 HB200 SS 3576 902.0605-00 Air Bleeder valve 873.0835-00 Seals O-ring 419.3×5.7 SMS1586 873.1276-00 Seals O-ring 453×5.7 SMS 1586 442.8783-01 Plug 873.0111-00 O-ring 44.2×3 SMS 1586 840.0023-00 Screws M6S 8×25 8.8 847.0012-00 Washer BRB 8.4×16 HB200 ISO 7089 840.1010-00 Screws M6S 12×16 8.8 442.9966-00 Pinion shaft housing assembled 442.7506-01 Pinion shaft housing 442.7136-01 Gasket T=0.5 442.7136-03 Gasket T=1.5 442.7136-02 Gasket T=0.8 868.0282-00 Bearings Spherical Roller 23122 CC/W33/C3 868.0804-00 Tapered roller bearing 452322 M2/W502 442.7130-01 Spacer inner 442.7131-01 Spacer outer 873.0779-00 Seals O-ring 84.1×5.7 SMS 1586 873.0399-00 Seals O-ring 99.1×5.7 873.1208-00 Oil seal ring 130×160×12 873.1208-00 Oil seal ring 130×160×12 442.9684-01 Bearing cover inner 442.7133-01 Bearing cover outer 840.0045-00 Screw M6S 12×30 8.8 ISO 4017 847.0147-00 Washer BRB 13×24 HB200 ISO 7089 840.0066-00 Screw M6S M16×40 8.8 fzb ISO4017 847.0016-00 Washer BRB 17×30 HB200 ISO 7089 442.7134-01 Gasket 442.7135-01 Gasket T=0.5 442.7135-02 Gasket T=0.8 853.0590-00 Spring Pin Prym N 8×28 442.9937-01 Pinion shaft 857.0337-00 Key 22×14×95 SMS2307 900.0022-00 Elbow 3/4 A4 SMS 435 900.2026-00 Magnetic plug 0606-12 873.0385-00 Tredo Nr.20 3/4” 442.7577-01 Oil level plug 873.0108-00 Seals O-ring 34.2×3 SMS 1586 442.7578-01 Pipe 855.0108-00 3_Retaining Rings Sga 85 840.1063-00 Screw M6S 16×120H 8.8 845.0009-00 Nut M6M M16 8 FZB ISO 4032 452.1635-901 Headcenter - main shaft 442.7117-01 Main shaft sleeve 853.0119-00 Pin CP 25M6×60 SMS 2374 442.7120-01 Main shaft step 855.0026-00 Retaining Ring Sga 100 SS1581 442.8089-01 Mantle A, M1 442.8070-01 Mantle B, M1 831.0016-00 Casting compound (kg) 831.0016-00 Casting compound (kg) 442.7105-00 Head nut with burn ring 442.8333-01 Inner head ring 442.7115-01 Burn ring 442.7102-01 Dust seal ring 442.7103-01 Retaining ring 442.7523-01 Retainer 442.7524-01 Scraper 840.0069-00 Screw M6S 16×55 8.8 ISO 4017 840.0071-00 Screw M6S 16×65 8.8 ISO 4014 847.0016-00 Washer BRB 17×30 HB200 ISO 7089 442.8059-01 Top shell EC2 442.9036-01 Liner 452.6197-001 Dowel 2172-00 D 36×32 442.8077-01 Fixing pin 442.8078-01 Bumper 442.8079-01 Bumper 900.1262-00 Elbow Adapter G 1/4 B×R 1/4 900.1030-00 Bushing RI-08-04 1/2”-1/4” 650.0086-11 Hose SAE 100 R1AT 1/4"×650" 914.0093-00 Lubrication Nipple AH R 1/4” 442.8090-01 Bracket 840.0021-00 Screw M6S M8×20 8.8 fzb ISO 4017 900.0243-00 Wrought iron pipe fittings Socket Rp 1/4 900.0652-00 Adapter G 1/4 B×G 1/4 B 442.9164-00 Spider cap 912.0114-00 Air Filter P10102 R1/4” 900.0134-00 Bushing 3/8"×1/4X" 900.2008-00 2_Pipe couplings Elbow 45 SMS 453-10 873.0838-00 Seals O-ring 499.3×5.7 SMS 1586 840.0079-00 Screw M6S 2×70 8.8 ISO 4017 847.0165-00 Washer TBRB 21×36 1370 SS 1466 442.9408-01 Spider bushing 840.0652-00 Screw M6S 20×90 8.8 ISO 4017 847.0132-00 Washer BRB 21×36 HB200 SS 3576 442.7193-01 Seals O-ring Oil seal ring 900.0981-00 Plug BSPT 1” hexagon 442.8111-00 Crusher chamber EC 442.8112-00 Crusher chamber C 452.1202-901 Crushing Chamber MC 452.0273-001 Concave ring MC 442.8114-00 Concave ring lower M1 442.8098-00 Concave ring lower M1 452.0274-001 Concave MC 442.8115-00 Concave upper 442.8099-00 Concave upper 831.0016-00 Casting compound (kg) 831.0016-00 Casting compound (kg) 831.0016-00 Casting compound (kg) 442.8082-00 Hydroset system 442.7255-92 Wrench and tool set 442.7255-91 Wrench and tool set 442.7255-90 Wrench and tool set
