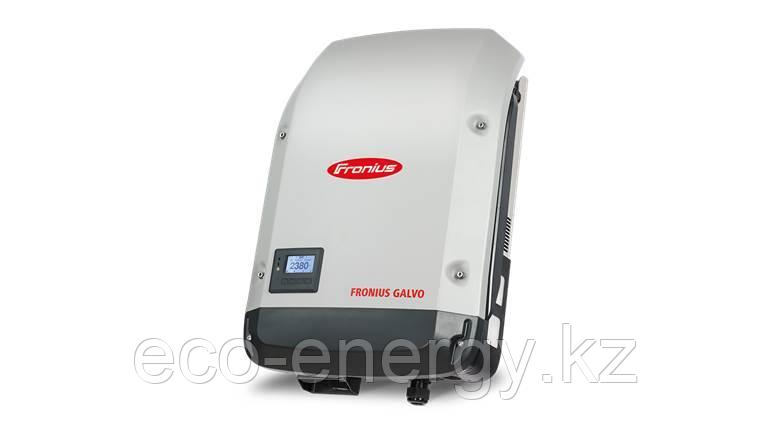

Fronius Galvo 1.5 1 WLAN/LAN/WEBSERV

Однофазные  сетевые  инверторы Fronius Galvo  со встроенным   блоком  мониторинга для небольших домашних систем. Трансформаторный с гальванической изоляцией. Интегрированы WLAN, LAN,  Webserver TECHNICAL DATA INPUT DATA Number of MPP trackers 1 Max. input current (I dc max ) 13,3 A Max. short circuit current, module array 20,0 A DC input voltage range (U dc min - U dc max ) 120 - 420 V Feed-in start voltage (U dc start ) 140 V Nominal input voltage (U dc,r ) 260 V MPP voltage range (U mpp min - U mpp max ) 120 - 335 V Usable MPP voltage range 120 - 335 V Number of DC connections 3 Max. PV generator output (I dc max ) 3 kWpeak OUTPUT DATA AC nominal output (P ac,r ) 1500 W Max. output power (P ac max ) 1500 VA AC output current (I ac nom ) 6,5 A Grid connection (U ac,r ) 1~ NPE 230 V AC voltage range (U min - U max ) 180 - 270 V Frequency (f r ) 50 / 60 Hz Frequency range (f min - f max ) 45 - 65 Hz Total harmonic distortion < 4 % Power factor (cos φ ac,r ) 0,85 - 1 ind./cap. GENERAL DATA Height 645,0 mm Width 431,0 mm Depth 204,0 mm Weight 16,4 kg Degree of protection IP 65 Protection class 1 Overvoltage category (DC / AC) 1) 2 / 3 Night-time consumption < 1 W Inverter design HF transformer Cooling Regulated air cooling Installation Indoors and outdoors Ambient temperature range -25°C - +50°C Permitted humidity 0 - 100 % Max. altitude 2) 2.000 m / 3.500 m DC connection technology 3x DC+ and 3x DC- screw terminals 2.5 - 16 mm² AC connection technology 3-pin AC screw terminals 2.5 - 16 mm² Certificates and compliance with standards ÖVE / ÖNORM E 8001-4-712, AS 4777-2, AS 4777-3, AS3100, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1-2, IEC 62116, IEC 61727, CER 06-190, CEI 0-21, EN 50438, G83, G59, NRS 097 EFFICIENCY Max. efficiency (PV - grid) 95,9 % European efficiency (ηEU) 94,5 % η at 5% P ac,r 3) 84,5 / 86,0 / 86,0 % η at 10% P ac,r 3) 87,5 / 89,7 / 89,6 % η at 20% P ac,r 3) 91,3 / 93,3 / 93,1 % η at 25% P ac,r 3) 92,4 / 94,1 / 93,9 % η at 30% P ac,r 3) 93,0 / 94,6 / 94,3 % η at 50% P ac,r 3) 93,9 / 95,5 / 95,2 % η at 75% P ac,r 3) 94,2 / 95,6 / 95,4 % η at 100% P ac,r 3) 94,0 / 95,9 / 95,6 % MPP adaptation efficiency > 99,9 % PROTECTION DEVICES DC insulation measurement Warning / shutdown (depending on country setup) at R ISO < 600 kΩ Overload behaviour Operating point shift, power limitation DC disconnector Integrated Reverse polarity protection Yes INTERFACES WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) 6 inputs and 4 digital inputs/outputs Interface to ripple control receiver USB (type A socket) 4) Data logging, inverter update via USB flash drive 2x RS422 (RJ45 socket) 4) Fronius Solar Net Signalling output 4) Energy management (floating relay output) Datalogger and web server Integrated External input 4) S0 meter connection / Evaluation of overvoltage protection RS485 Modbus RTU SunSpec or meter connection
